Parking Systems

SeeGlass Big is a glass enclosure oriented for the separation of public spaces such as establishments that tend to have high inflow of customers as restaurants, hotels, shopping malls, etc.

The main feature of this product is the absence of lower profile where sliding panels are attached to the floor using latches therefore additional construction work is not needed.

Glass thickness available 10 mm

Ideal for establishments with high inflow of people as restaurants, hotels, shopping centers, etc.


Applications

SeeGlass sliding and folding system are designed to fit into any type of housing or business that needs additional space or to be used as partition, providing maximum comfort and modern design.

Restaurants

SeeGlass Big is an ideal solution for restaurants with large number of customers as it a very stable and resistant system.
It also allows the possibility to easily change the distribution of the restaurant creating separate rooms and atmospheres if required for different kind of events as weddings, dinners, celebrations…

Shops

SeeGlass Big is great solution for stores, shopping centers or any kind of businesses that want to display products during working hours without clients having to enter to see what is being offered, as it secures the inside once everything is closed.



Interior Partition

SeeGlass Big is a practical option for inside partition due to the lack of lower profile as once panels have been moved to the side, a complete opening is achieved.

Shopping Centers

SeeGlass Big is an efficient option for shopping center where constant and quick opening of shops is needed due to high inflow of clients while featuring an option for product display as well.

Configurations

As movable panels are placed into the parking area of the system on one or both sides when the opening is needed, lower profile is not needed for correct functioning of this system, what allows us to have a clear opening without any obstacles.

Accesories y Components



Highly resistant bearings and reinforced panel fastening system.

Upper profile parking system.

Lower panel locking device.

Lower latches for panel fastening.



Are you interested in this product?
Your budget in 24 HOURS and without obligation.



Opening Devices



Simple and Double Knob

Crank Lock

Handlebar

Finishes

Colors available:


Mostly used colors

Standars colors



RAL 9006 NATURE

RAL Gamme



RAL 7035



RAL 7045



RAL 7046



RAL 7047



RAL 7011



RAL 9011



RAL 8014

Wooden Imitations



Golden Oak



Sapelly Caoba



Dark Walnut



Pinewood

Maximum Measures


GLASS THICKNESS MAX. HEIGHT MAX. WIDTH MAX. PANEL WIDTH
10mm 3500mm LIMITLESS 1100 mm/panel

Product certificates

All our products and components have gone through testing and obtained needed accredited certificates:


CATALOGUE

If you need more information about our systems for different types of vertical separation, complements and available finishes download our catalogue here.

Download our Catalogue

Certified Quality

Our system meets different certifications and requirements requested to glass systems manufacturers. Thanks to a CE mark certification, product testing and our warranty, C3 Systems guaranties the maximum quality in our sliding systems.

Please check our quality certificates available.

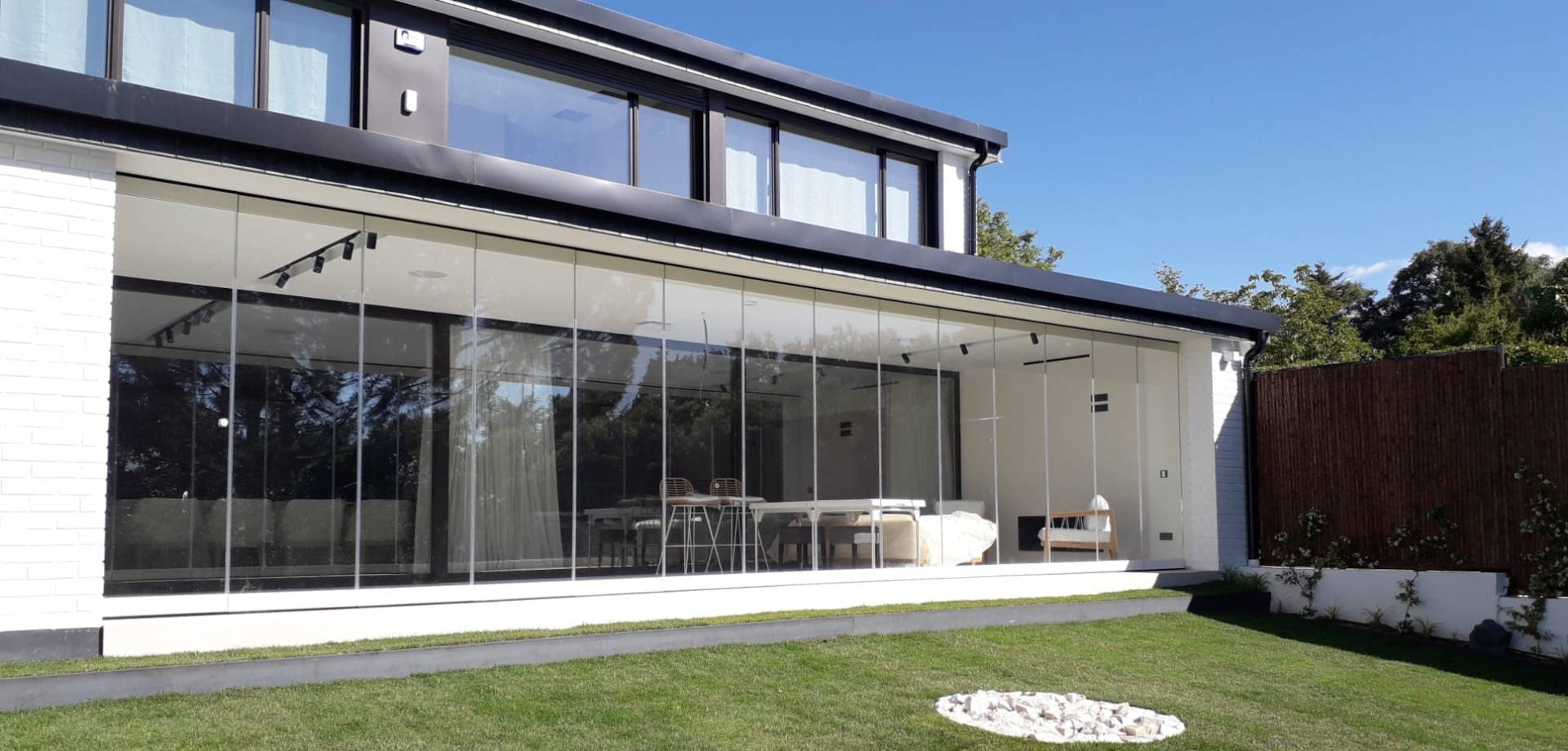

Photo Gallery
